1. Company Overview

2. Product Introduction

2.1 Product Highlights

• Removable components: Facilitates easy maintenance and replacement, reducing downtime.
• Full - color printing: Capable of producing vivid and accurate full - color prints, bringing your designs to life.
• Intelligent Numerical Control: Ensures precise and consistent printing results, enhancing the overall print quality.
• High - Speed Printing: Increases work efficiency, allowing for rapid printing of large quantities of materials.
• Intelligent ink metering: Monitors and controls ink usage effectively, preventing waste and ensuring cost - efficiency.
• Flexible nozzle combination: The nozzle size can be freely combined to adapt to different printing requirements, whether for fine details or large - area printing.
• Computer connection system: Enables seamless integration with computers, allowing for easy print job setup and control.
• In - line conveyor coding system: Ensures smooth and continuous printing on moving materials, suitable for production line applications.
• Continuous ink supply system: Provides a stable and uninterrupted ink supply, reducing the frequency of ink cartridge replacement.
• Compatibility with various paper materials: Can handle a wide range of paper types, including kraft paper, copperplate paper, photo paper, etc., expanding application scenarios.

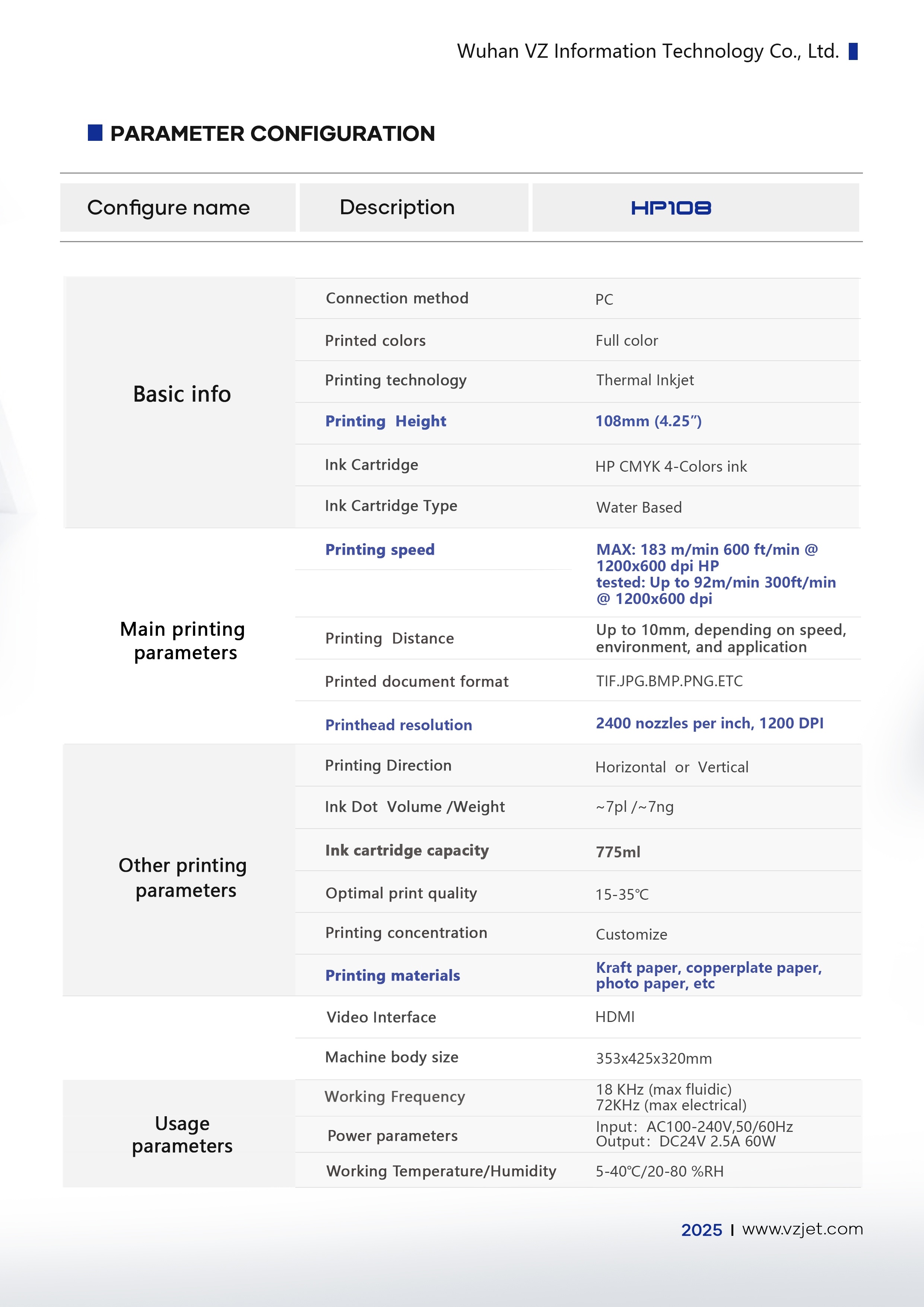

3. Parameter Configuration

3.1 Basic Info

• Connection method: PC - Allows for convenient connection to personal computers for print job management.
• Printed colors: Full color - Delivers rich and vibrant color reproduction.
• Printing technology: Thermal Inkjet - Utilizes thermal energy to eject ink droplets precisely onto the printing medium.
• Printing Height: 108mm (4.25″) - Determines the maximum height of the printable area.
• Ink Cartridge: HP CMYK 4 - Color ink - Ensures high - quality color mixing and consistent print output.
• Ink Cartridge Type: Water Based - Environmentally friendly and suitable for various printing materials.
• Printing speed: MAX: 1831 mm/min 600 ft/min @ 1200x600 dpi HP tested; Up to 92m/min 300ft/min @ 1000x1000 dpi. Note: Printing speed is affected by speed, environment, and application - Adjusts according to different working conditions to balance speed and print quality.

3.2 Main printing parameters

• Printing Distance: Adjustable according to actual needs to ensure optimal print results.
• Printed document format: TIF, JPG, BMP, PNG, etc. - Supports a wide range of common image and document formats for flexible printing.
• Printhead resolution: 2400 nozzles per inch, 1200 DPI - Delivers high - resolution prints with fine details.
• Printing Direction: Horizontal or Vertical - Can be set according to the layout and requirements of the print job.
• Ink Dot Volume/Weight: ~7pl / ~7ng - Controls the size and weight of ink droplets for different print effects.

3.3 Other printing parameters

• Ink cartridge capacity: 775ml - Provides a large ink storage capacity, reducing the frequency of ink cartridge replacement.
• Optimal print quality: 15 - 35°C - The recommended temperature range for achieving the best print quality.
• Printing concentration: Customize - Can be adjusted according to specific print requirements to control color density.
• Printing materials: Kraft paper, copperplate paper, photo paper, etc. - Versatile in handling different printing media.
• Video interface: HDMI - Enables high - definition video output for related operations (if applicable).

3.4 Usage parameters

• Machine body size: 353x425x320mm - Compact design for easy placement in different working environments.
• Working Frequency: 18 KHz (max fluidic) - Related to the internal working frequency of the printer.
• Power parameters: Input: AC100 - 240V 50/50/60Hz; Output: DC24V 2.5A 60W - Standard power input and output specifications for safe and stable operation.
• Working Temperature/Humidity: 5 - 40°C / 20 - 80 5RH - The allowable temperature and humidity range for normal operation of the printer.

4. Installation and Setup

1. Unpacking: Carefully unpack the printer and check for any damage during transportation. Ensure all components are included as per the package list.
2. Placement: Choose a stable and flat surface for placing the printer. Ensure proper ventilation around the printer to avoid overheating.
3. Connection:
   • Connect the printer to the computer using the appropriate interface (as per the connection method).
   • Connect the power supply according to the power parameters.
4. Ink Cartridge Installation: Insert the HP CMYK 4 - color ink cartridge into the designated slot correctly, following the instructions.
5. Initialization: Turn on the printer and follow the on - screen prompts for initial setup, including setting the printing parameters such as printing direction, resolution, etc. according to your needs.

5. Operation Guide

1. Print Job Preparation:
   • Create or open the document to be printed on the connected computer. Ensure the document format is supported (TIF, JPG, BMP, PNG, etc.).
   • Adjust the print settings in the printing software, including printing direction, resolution, printing concentration, etc. according to your requirements.
2. Printing: Send the print job to the printer. Monitor the printing process and ensure the printing materials are fed correctly.
3. Maintenance:
   • Regularly check and clean the printer components (especially the printhead) to ensure optimal print quality.
   • Replace ink cartridges when the ink level is low or when print quality deteriorates.
   • Follow the recommended maintenance schedule for removable components and the continuous ink supply system.

6. Troubleshooting

1. Print Quality Issues:
   • If there are streaks or missing colors in the print, check the printhead resolution and cleaning status. Try cleaning the printhead or adjusting the printing concentration.
   • If the print is blurry, check the printing distance and the flatness of the printing materials.
2. Connection Issues:
   • If the printer cannot be connected to the computer, check the connection cables and the computer's interface settings. Ensure the correct connection method is used.
3. Ink - related Issues:
   • If ink leakage occurs, check the ink cartridge installation and the integrity of the ink supply system. Replace any damaged components if necessary.
   • If the ink level is not detected correctly, check the intelligent ink metering system and the ink cartridge contact points.

7. Warranty and Service
